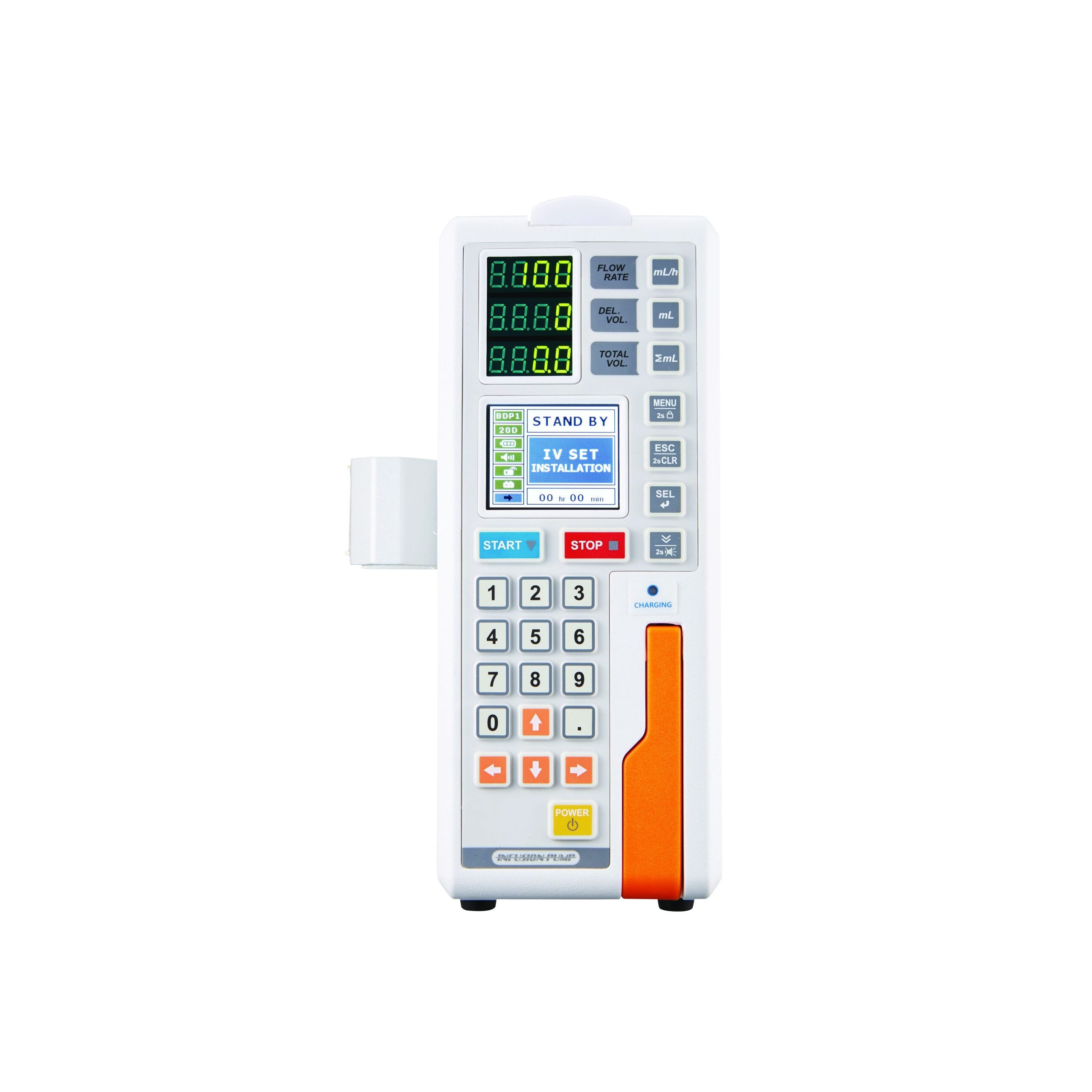

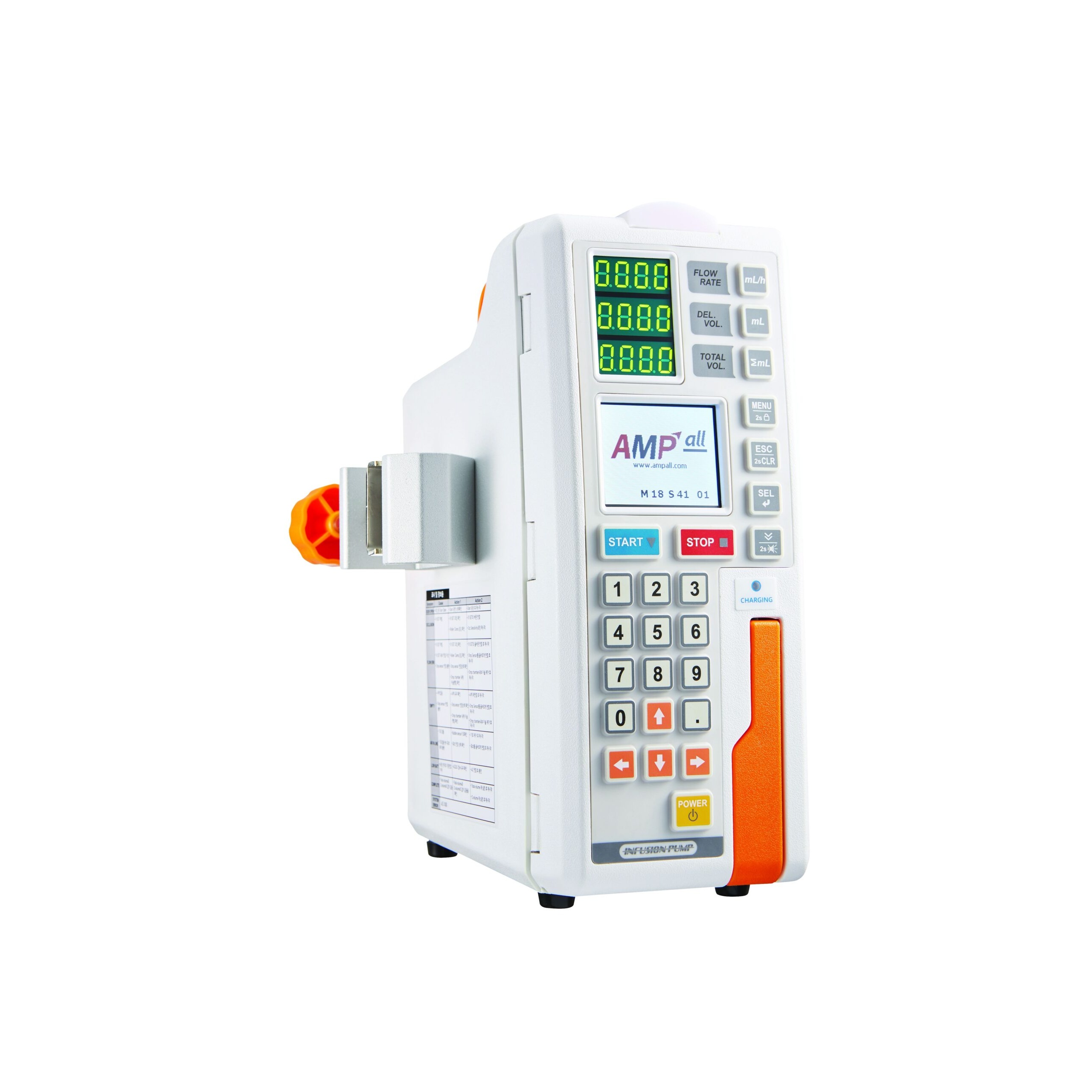

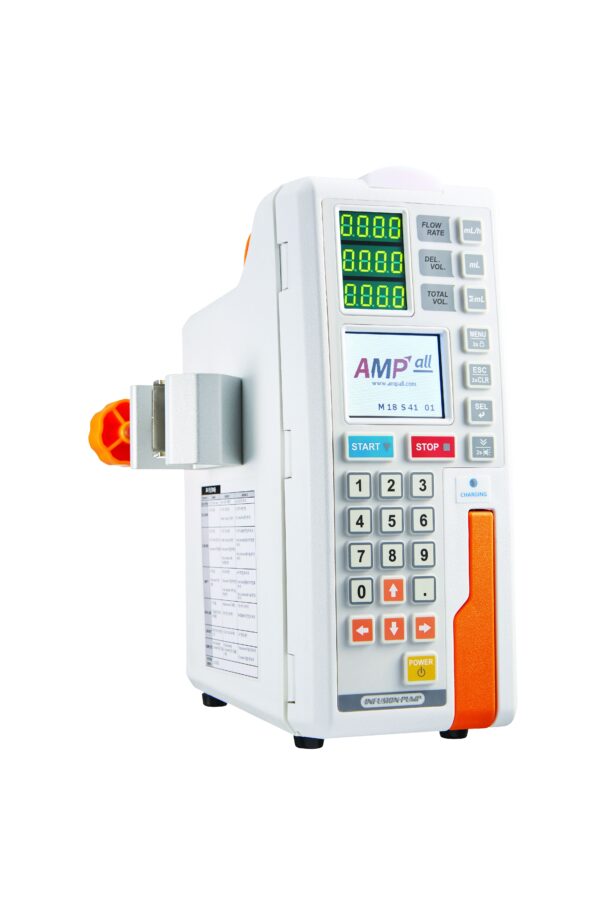

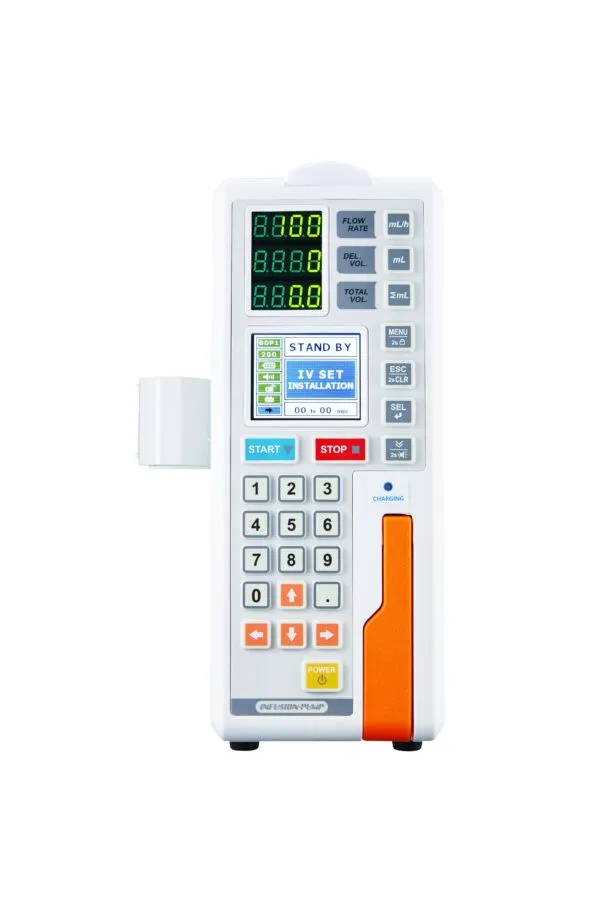

IP-7700 Infusion Pump
The IP-7700 infusion pump utilizes a peristaltic mechanism to deliver exact flow control. It features advanced ultrasonic bubble detection and is compatible with IV sets from various brands.
Designed for ease of use, the IP-7700 offers a straightforward setup process through its intuitive silicone numeric keypad. Its FND display and color LCD provide clear, comprehensive information at a glance. Key infusion parameters—such as K.V.O. rate, purge rate, and bolus—can be easily configured within the operating interface.
IP-7700 Infusion Pump
Features:
Lightweight & Compact: Weighs only 3.5 kg with a space-saving design, ideal for easy handling and mobility. Multi-Brand IV Set Compatibility: Supports up to 4 standard IV set brands—BD (A122), TERUMO (TS PA 200L), KOREAN VACCINE (1 and 2), and ARIES. Each pump can be calibrated for up to 9 different IV sets.
Flexible Flow Rate Adjustment: Offers a wide flow rate range from 0.1 to 999.9 ml/h, allowing for precise control. The numeric keypad ensures simple and accurate programming.
Full Programmable Dosage (Optional): Automatically calculates and delivers the correct flow rate based on the patient’s dosage requirements.
Reliable Alarm System: Visual and audible alerts via LED indicators and buzzer quickly notify users of errors or emergency conditions.
Battery Status Indicator: Built-in LED display shows remaining battery level and charging status to ensure timely recharging.
K.V.O. (Keep Vein Open) Function: Automatically switches to a low flow rate (3 ml/h for 15, 19, 20 drops/ml sets or 1 ml/h for 60 rops/ml sets) after infusion completion to prevent vein blockage due to blood coagulation.
Ultrasonic Air Bubble Detection: Enhances safety by detecting air bubbles in the infusion line.
Veterinary-Ready: Designed to meet the needs of veterinary applications.
